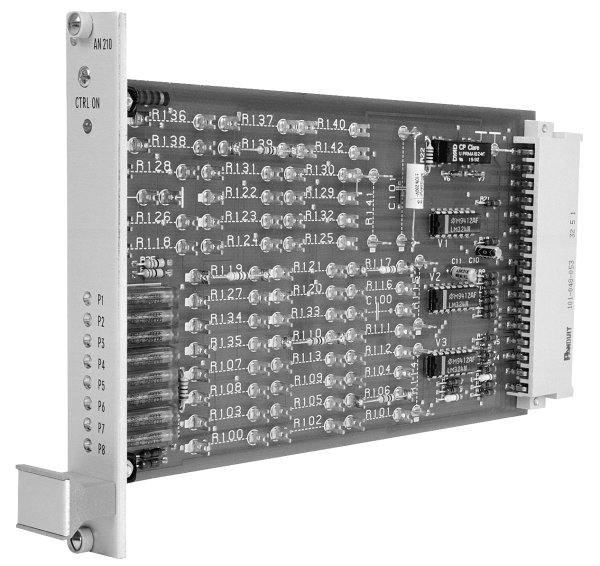

AN210

Universal OP Amplifier

The AN 210 module has been designed as a logical element for systems.

The many different OP circuits, solder tags for components and the possibility of external interconnection for the individual OP amplifiers make this module suitable for a wide range of applications.

Features:

• 11 OP circuits
• solder tag component connections
• OP amplifiers can be interconnected externally
• 8 multi-turn resistors on the front plate for exact adjustment of the OP amplifiers being used
• relay for amplifier lockout
• switching status is shown by LEDs on the front plate
